A city at night and a half city lake丨Yuncheng Nanhu Park

Yuncheng County, under the jurisdiction of Heze City, Shandong Province, is located in the southwest of Shandong Province, the northeast of Heze City, and the lower reaches of the Yellow River.

A chivalrous city full of righteousness, clouds and lofty sentiments.

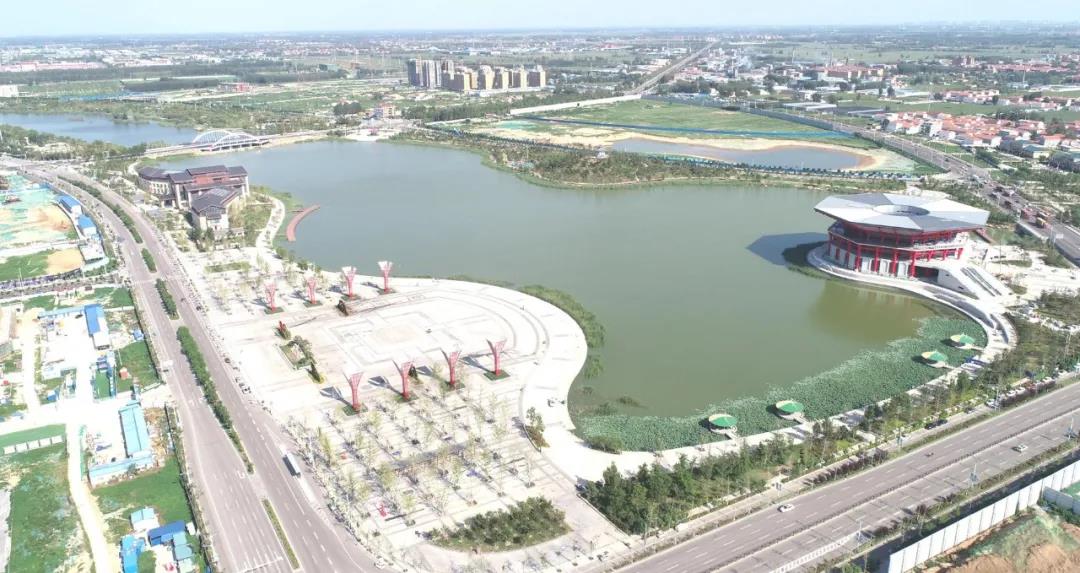

Nanhu Park is located in the southern part of Yuncheng County, covering an area of about 650 acres, of which more than 400 acres of water surface. It is mainly built with cultural and tourist facilities such as the Grand Theater, Nanhu Hotel, and 6 garden landscapes including Qifeng Mountain. The surrounding public facilities are complete, including public cultural service facilities such as museums (exhibition halls), science and technology museums, and mass art centers.

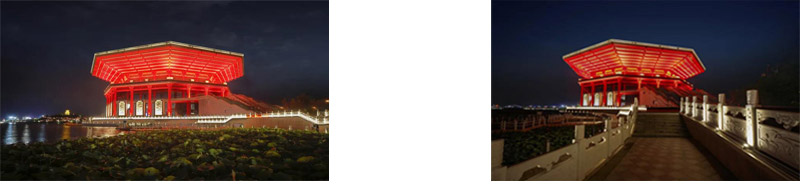

01 Breathable Architecture丨Yuncheng Museum

Yuncheng Museum

The shape is borrowed from the Millennium Tang Pagoda in Yuncheng

Layers of brick bucket arch rings are built to form the vault

The dougong is well-made, and is collected in layers.

The structure is rigorous and well-organized,

It's so wonderful.

The total building area is more than 20,000 square meters

Building height 23.95 meters

Divided into four layers

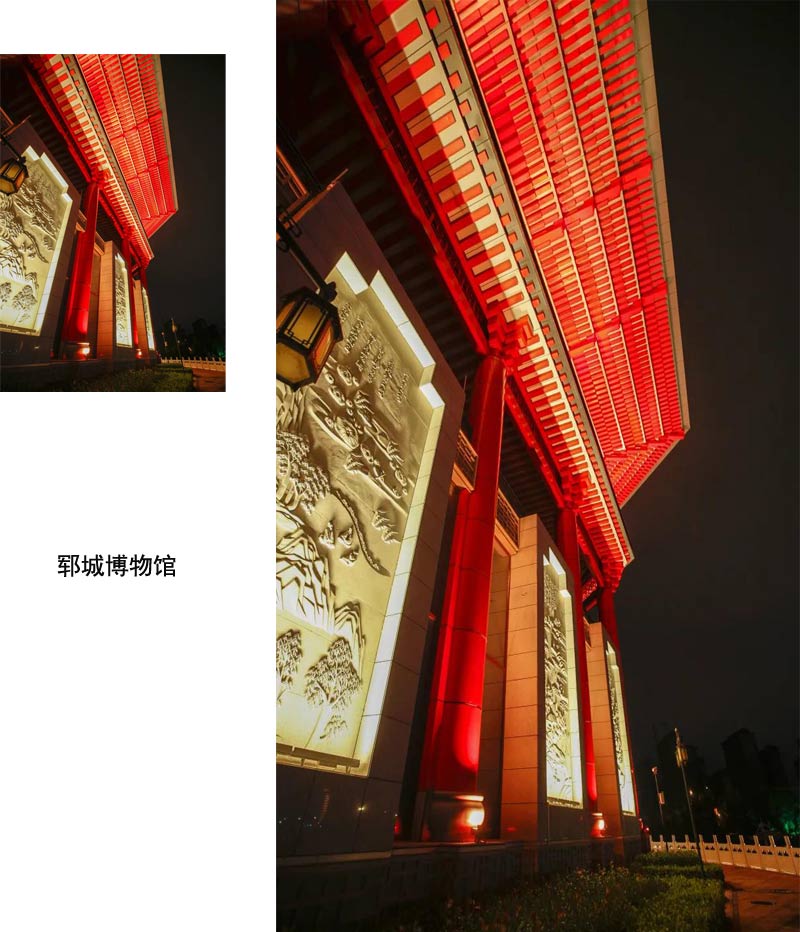

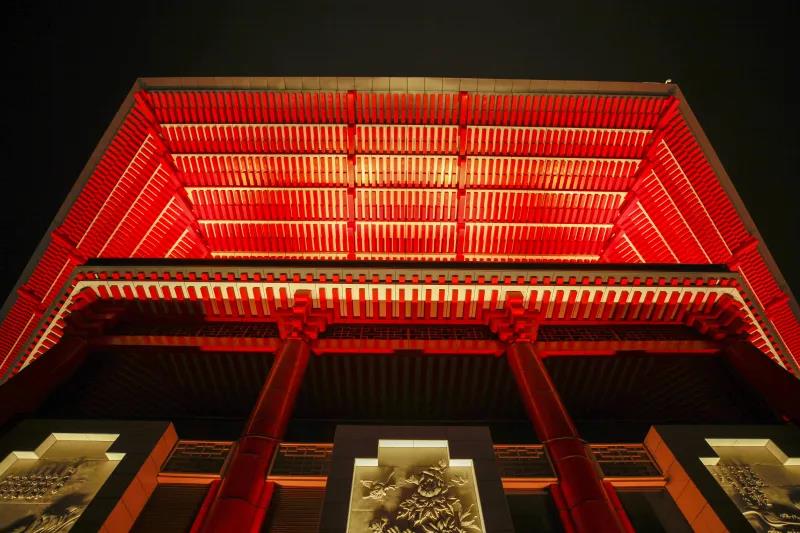

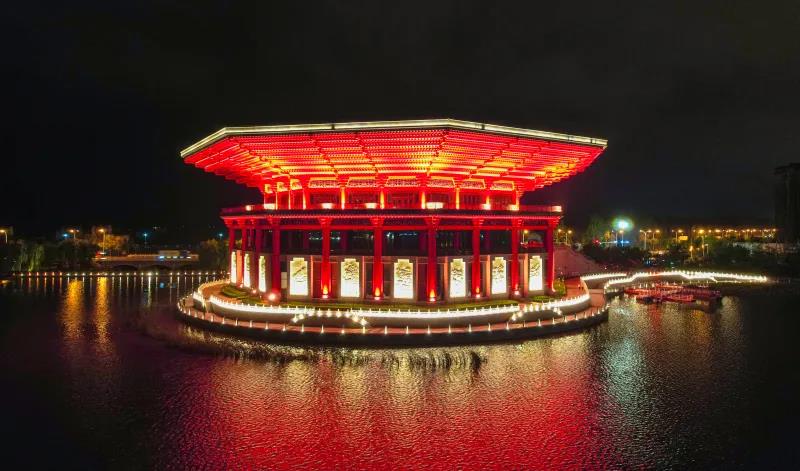

Yuncheng Museum

  A museum similar to the bucket arch structure

Use polarized custom floodlights to highlight the structure of the building,

The overall grayscale changes present a breathing building

02 A city at night and a half city lake 丨 Yuncheng Nanhu Park

Night view of Nanhu Park

Mainly with warm yellow and white tones with moderate brightness

And strive to create "humanity and nature",

Reflects the quiet and soft effect.

According to different lighting properties and

Make up the various spatial structures of Nanhu Park,

Plan the lighting system as

Functional lighting and landscape lighting are two major areas.

Through the comprehensive use of modern lighting techniques,

Combined with new creative lamps,

Create a quiet, elegant and vibrant light environment.

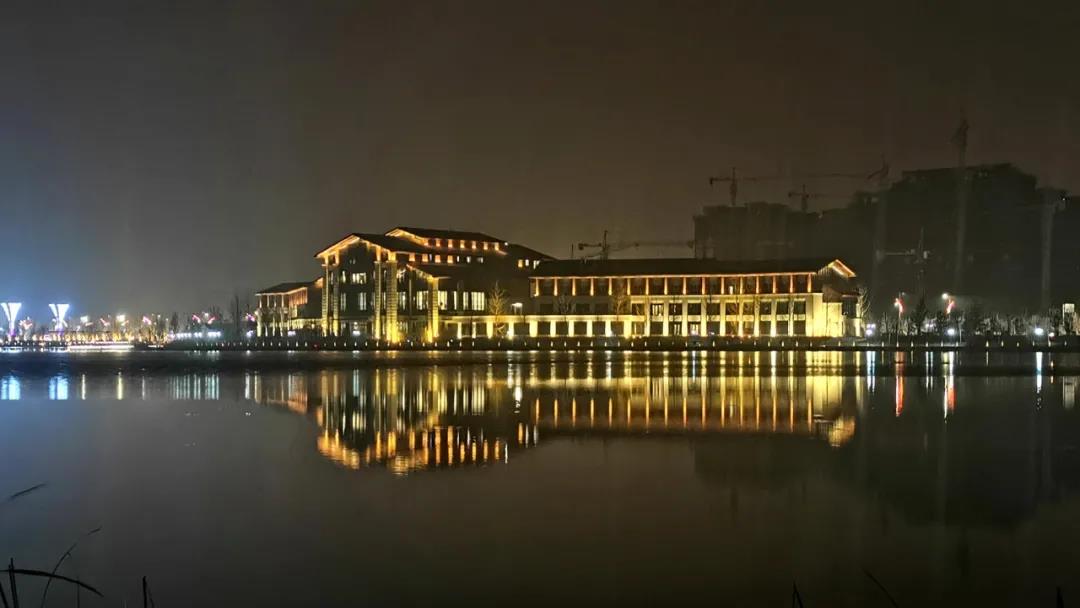

Yuncheng South Lake Park

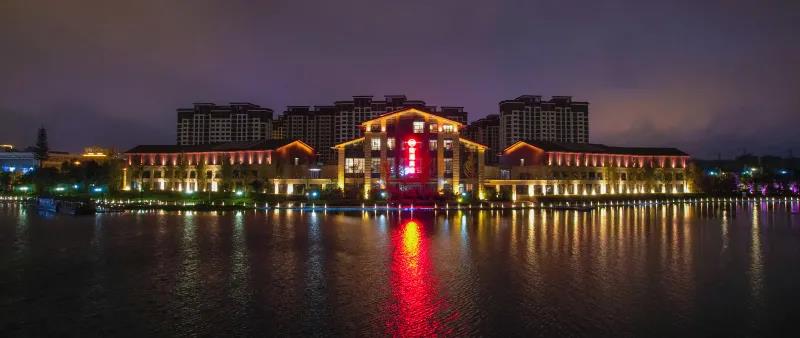

South Lake Hotel

Use warm light and warm red light

Create a warm, comfortable and layered building.

The building of Boguangjian Hotel has a quiet and warm effect.

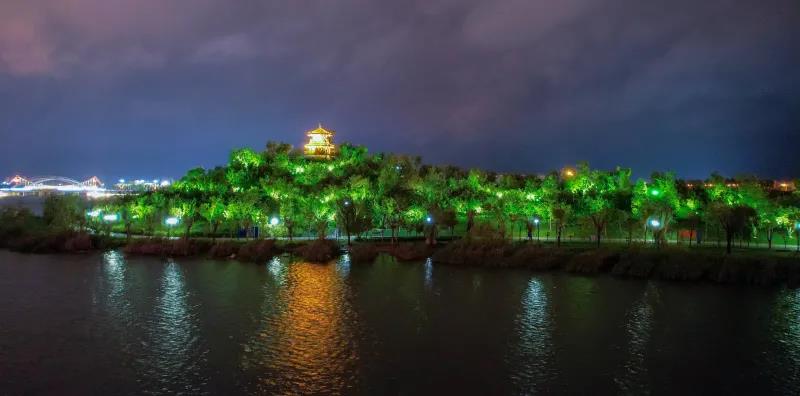

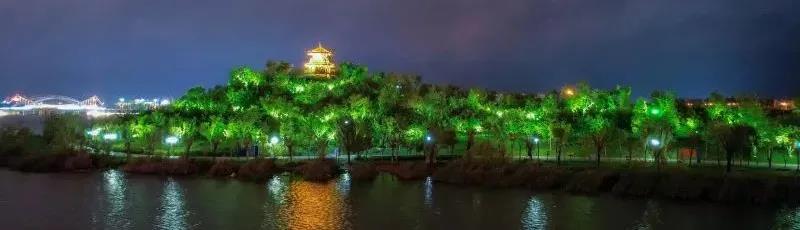

The mountain and landscape gardens of Yuncheng Nanhu Park are nearly 250 acres, using the first generation and second generation of Ou Ruijie lighting to carry out the main lighting.

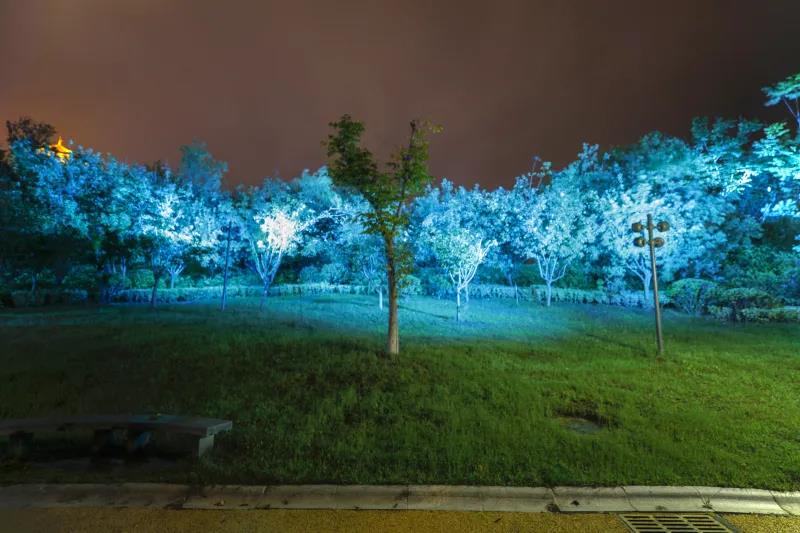

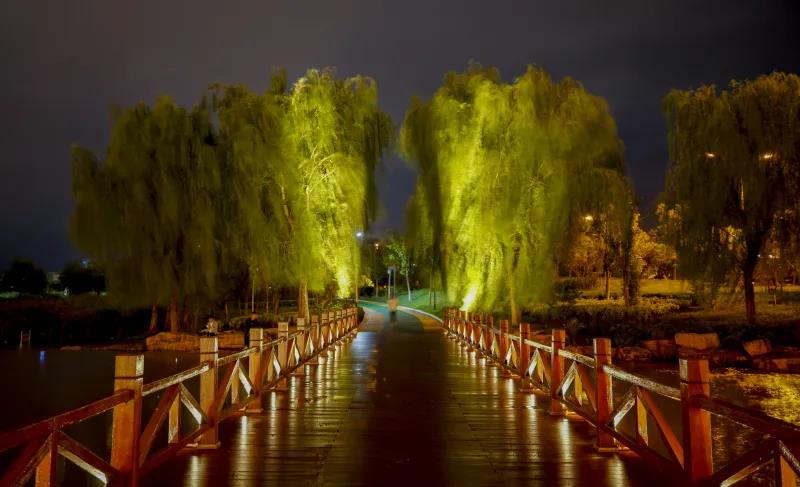

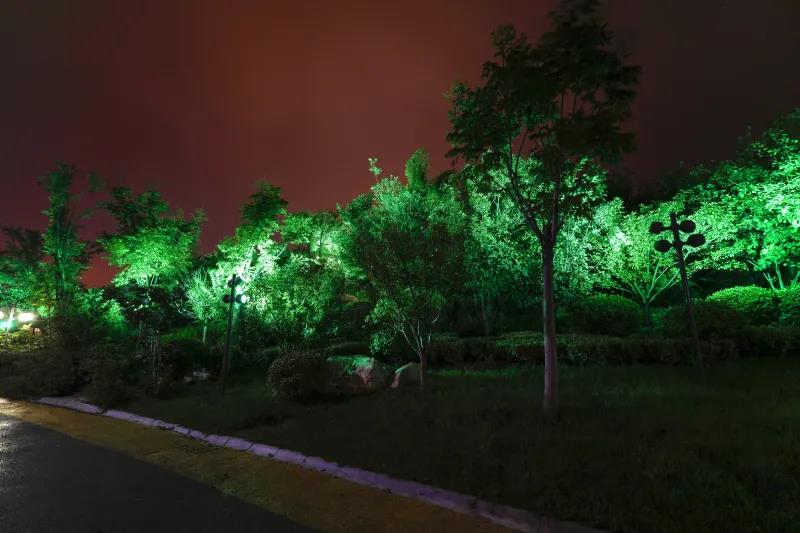

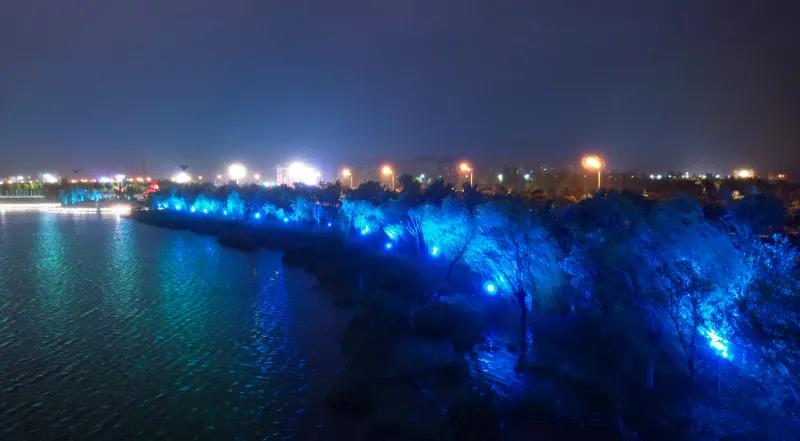

There are many tree species in Nanhu Park, and the lighting design has abandoned the popular large-area "burning mountain" lighting. Only the key areas are illuminated. On the basis of the low-level lighting satisfying the functional lighting, it is intended to render the elegant and dreamy "forest" lighting atmosphere and promote the eco-environmental design concept.

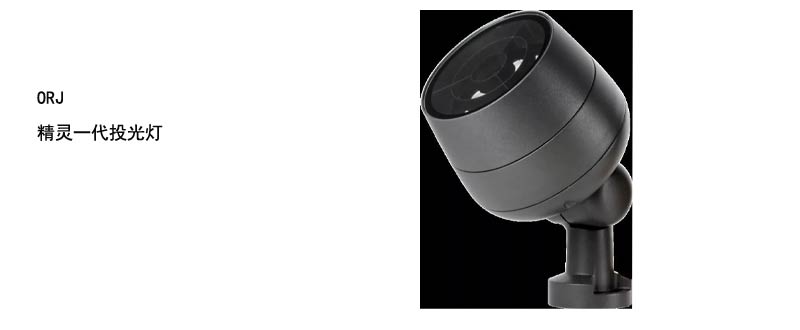

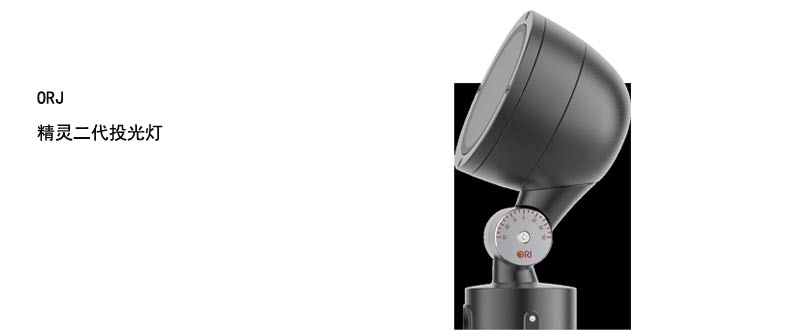

The lamps and lanterns adopt Oruijie Genie 1st and 2nd generation floodlights. The design is firm, with a high-quality, corrosion-resistant special surface coating, IP66 grade, to ensure the long service life of the lamps and other multiple advantages, and a lot of upgrades such as light efficiency improvement , Increased display index, increased anti-glare measures (5 types), increased multi-application installation scenarios, etc.

Use OSRAM's new generation of high luminous efficiency light source, using 2700KRGBW, all lamps and lanterns display value above 80, luminous efficiency above 80lm/w, color tolerance less than 3, color temperature deviation value within 100K.

Through the control, the gray scale change from 2200K to 5700K or the specified color temperature can be realized, and the change process is soft and without jitter, which can support 4K ultra-definition video shooting. ‍

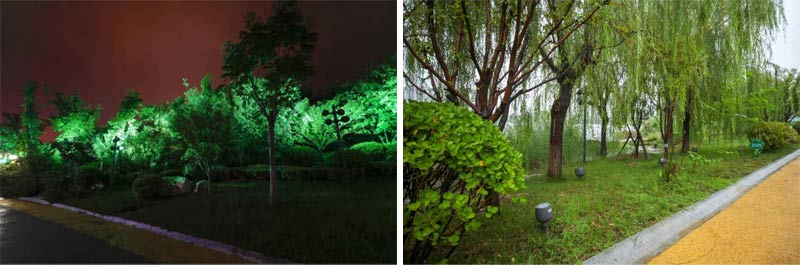

Installation method adopts

Low-level lighting and multi-function lamp pole projection,

Can achieve multi-angle, multi-directional projection,

Take into account the multi-directional lighting of high trees, low trees, and trails.

A city at night and half a city lake, the night lighting of Nanhu Park focuses on spiritual enjoyment rather than a strong visual impact. The lighting design interprets the intermingling relationship between Nanhu Park and the surrounding night environment, highlighting the city image of "water city" and "green city". Created the "back garden of the city" under the night sky for Yuncheng.

Innovative lighting changes the city

Ou Ruijie's new cultural and tourism art lighting products, the technical integration of cultural tourism lighting, evolve a new population of outdoor art lighting.

Newly upgraded the three major categories of Mirage, Cullinan, and Genie 2, equipped with the product advantages of ZOOM LENS and SUPER OPTICS technologies. The eight applications of kaleidoscope, projection lamp, floating shadow lamp, firefly, zoom dyeing, meteor lamp, water pattern lamp, and aurora lamp create a new visual experience.

Cultural and tourism art lighting technology integration, a new group of outdoor art lighting.
