Quiet Landscape Painting 丨 Lighting Case of Taihu Road

By:Time:2022-01-06


Huzhou is the birthplace of the Two Mountains Theory. With the theme of "Lucid waters and lush mountains are invaluable assets", we integrate "ecological civilization", "green environmental protection" and "sports and leisure culture" into the landscape lighting design along the road. Make Taihu Road a lakeside landscape belt with prominent characteristics of ecological civilization construction.

Lighting Upgrading and Renovation of Taihu Road

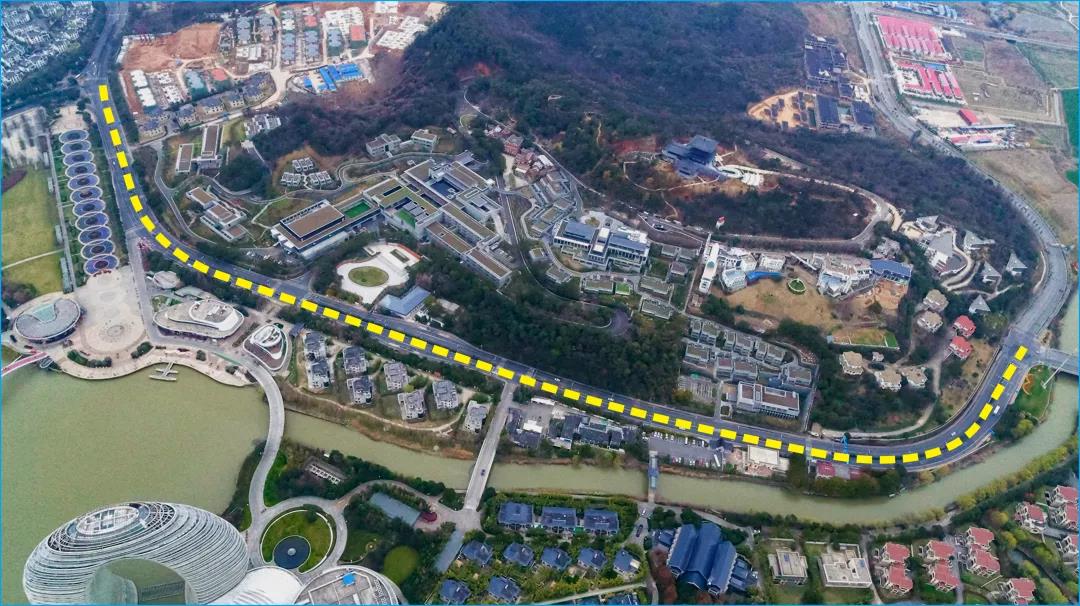

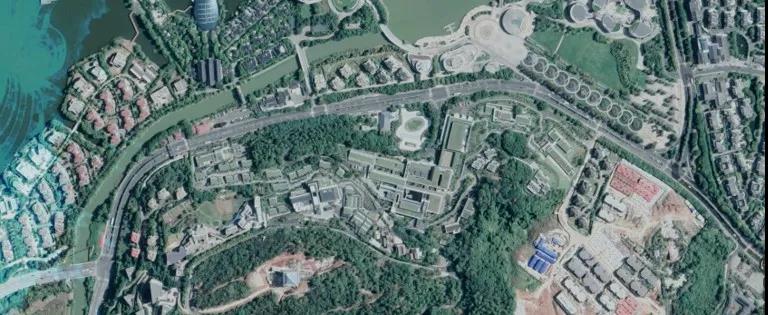

The Taihu Road Lighting Project in this case is located in the north of Huzhou City, starting from Tonghu intersection in the south and Binhu Avenue in the north. As one of the main roads of the Taihu Lake Tourist Area, it is an important viewing channel of the Taihu Lake Tourist Resort in Huzhou. 1.3 km.


Lighting design: With the theme of "green water and green mountains", on the premise of not affecting the safe driving of vehicles, the greening forms on both sides of the road are progressively advanced, and the light color temperature level with a small span is used to improve the greening landscape on both sides of the road and the central area. Green belts and other landscapes are used for lighting design to form the lighting context of the scenic spot at night.


Focus on improving the lighting of the intersection of Taihu Road and Tonghu Road, Taihu Road and Binhu Avenue; lighting important nodes such as Moon Bay South Square and important entrances and exits to ensure appropriate scene illumination, adding cultural tourism elements and lighting Sculptures interact with appropriate lighting to meet the needs of citizens for leisure walks at night


Lighting control: establish an efficient and intelligent control system, establish a multi-level and all-round lighting control network, and realize instant, high-efficiency and intelligent lighting management.


Guidance and Transmission


A city of mountains and rivers, a thousand years of poetry and painting, respecting the characteristics of the city, combining with the cultural heritage, and adapting measures to local conditions, the Taihu Road is divided into three sections of light movement!

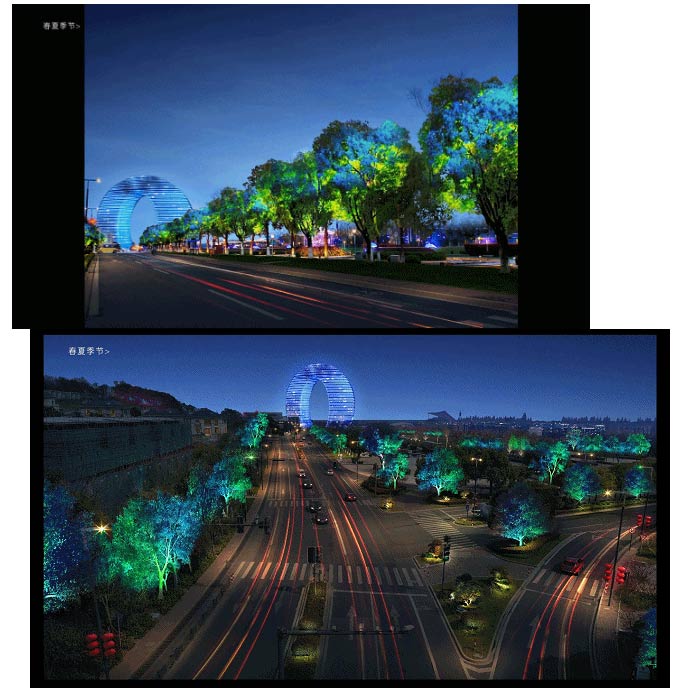

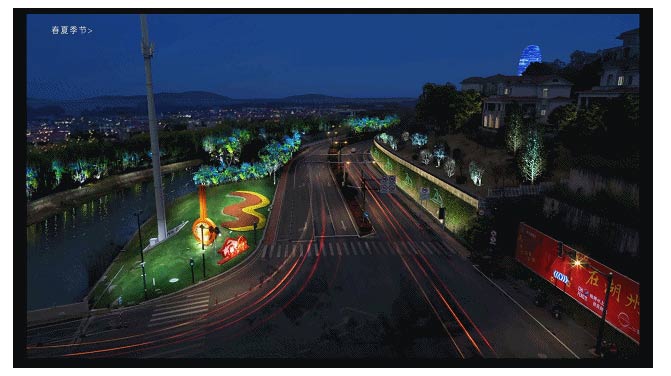

Huguangshan color丨"Huguangshanshi" Huguangshan color section entrance street tree adopts RGBW color matching cold and warm colors - white light is mainly mixed with yellow orange and cyan blue light, showing different tones and colors, corresponding to different seasons; cool colors in spring and summer, warm colors in autumn and winter

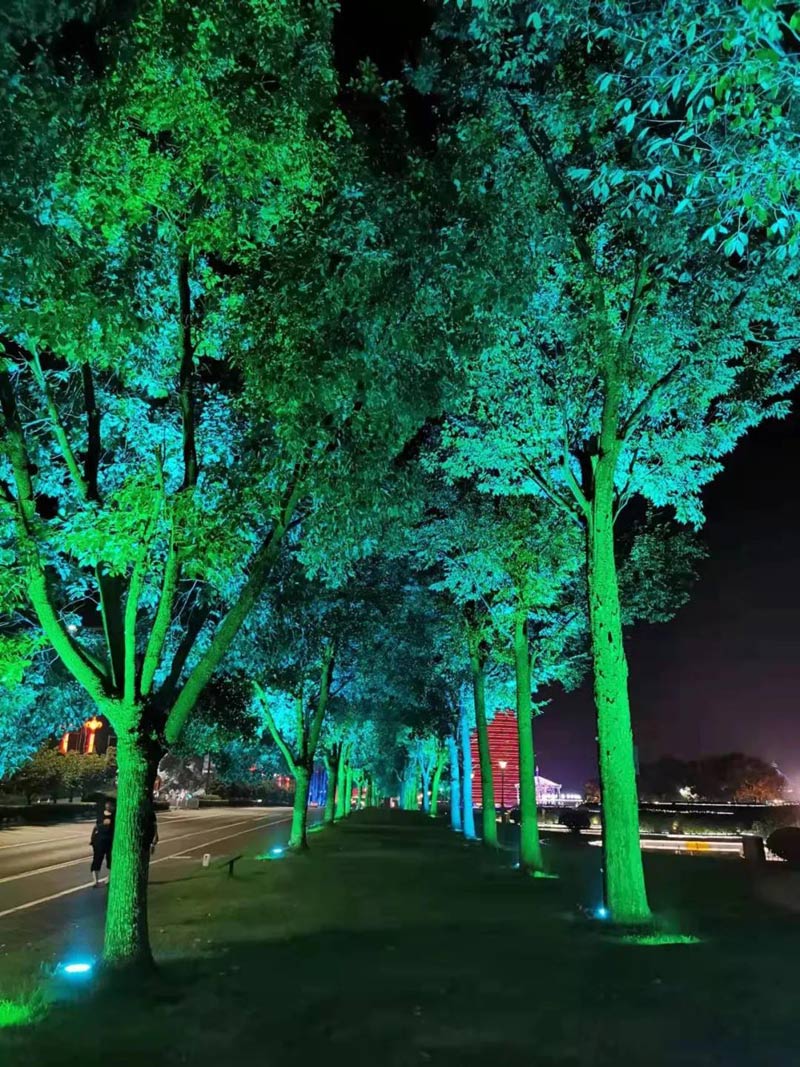

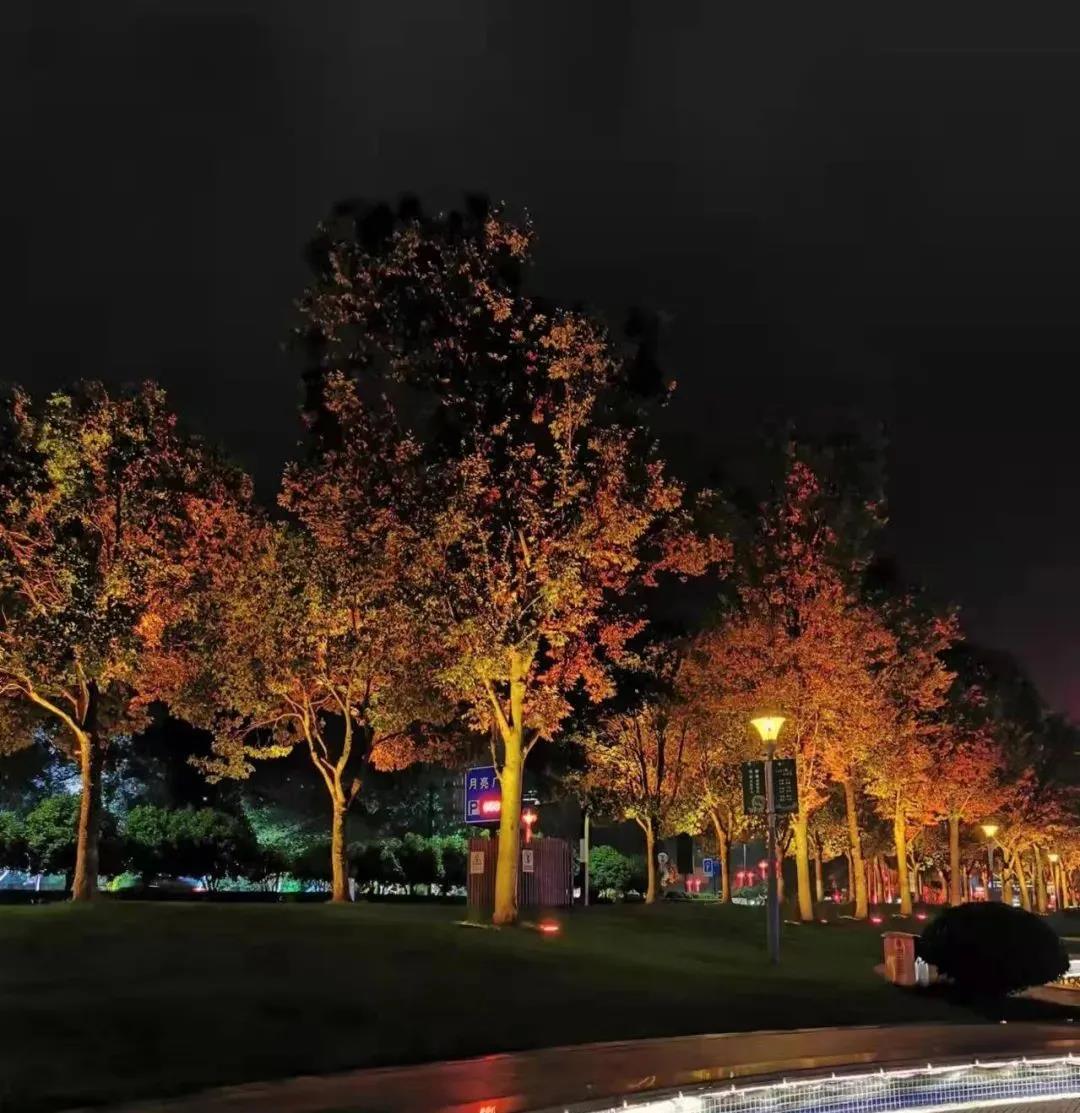

Light Rhythm Bond丨The "Light Rhythm Bond" section is mainly based on the tree lights on both sides of the street tree. The two sides of the street tree are mixed with two tones of RGBW, cold and warm. Different seasons to ensure the unity, sense of luxury and seasonality of the entire Taihu Road (blue in spring and summer, orange in autumn and winter).

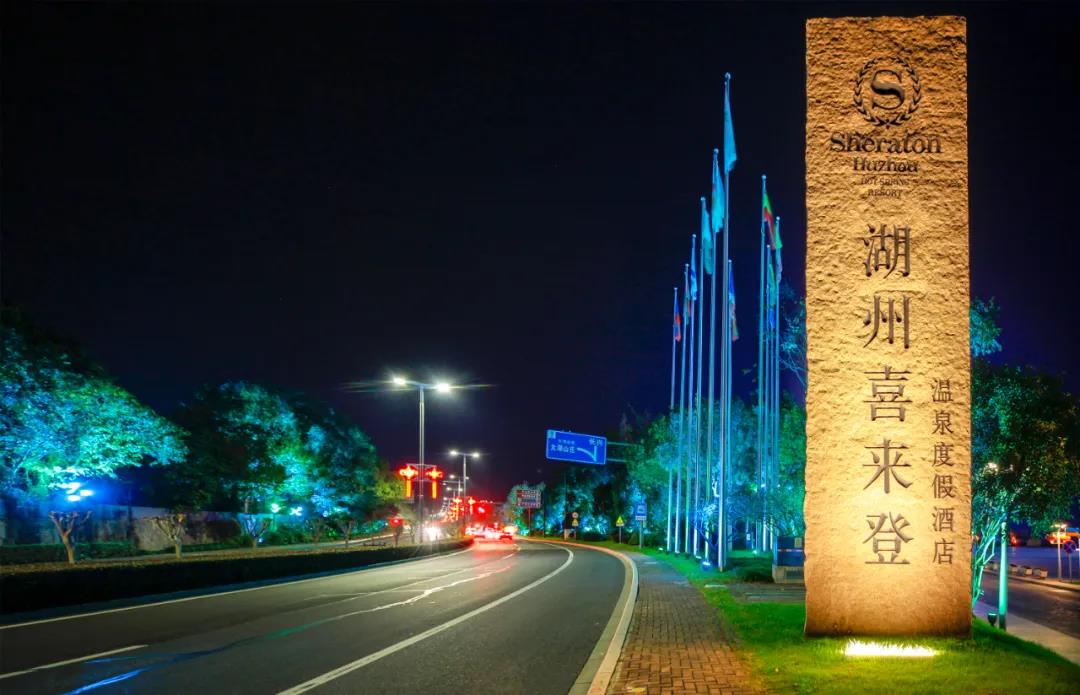

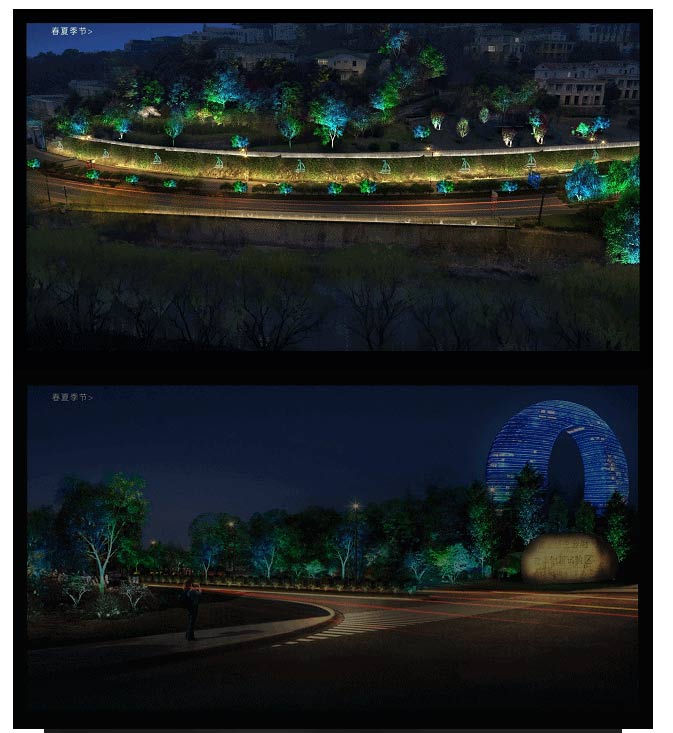

Hub Portal丨The "Hub Portal" section is demarcated by Changxing County. The sculpture is illuminated with floodlights to enhance the identity at night. The retaining wall has climbing vines and is backed by wall washer lights. On both sides of the street tree, RGBW is mixed with two tones of cold and warm, and white light is mainly mixed with yellow-orange and cyan-blue light, showing different tones and colors, corresponding to different seasons, to ensure the unity, high-quality and seasonal (spring and summer) of the whole Taihu Road. blue-blue, orange-yellow in autumn and winter).


As the main road of Taihu Lake Tourist Area, it is an important hub from the urban area to the south bank of Taihu Lake. The northern section of Taihu Road, where the project is located, has dual functions of transportation and sightseeing; there are many high-end resort hotels in the surrounding area, which is a resort and popular gathering place for vacation tourism in South Taihu Lake.

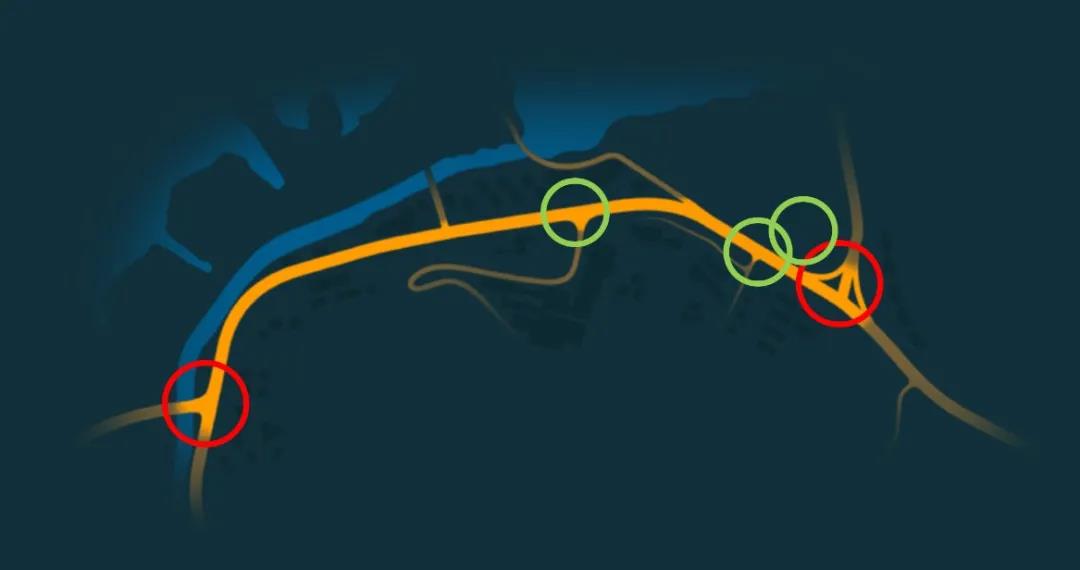

Vehicle node lighting design (red part):


● Mainly static lighting, with slow light color changes; use small-span color temperature segments to distinguish greening levels to create a three-dimensional sense of greening.


● Lamp installation adopts poles, tree hugging, etc. to improve the position of lamps, so as to prevent glare from interfering with driving vehicles.


Pedestrian node lighting design (green part):


● Mainly based on dynamic lighting, with interactive lighting sculptures to attract tourists and form a sightseeing focal point; highlight the night scene quality of nodes with novel lighting effects.


● Lamp installation adopts poles, tree hugging, underground burial, etc. to hide the location of lamps, reduce glare, and reduce the probability of man-made damage.

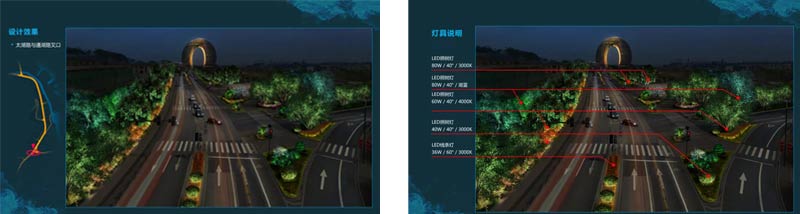

Lighting design and lighting parameters at the intersection of Taihu Road and Tonghu Road

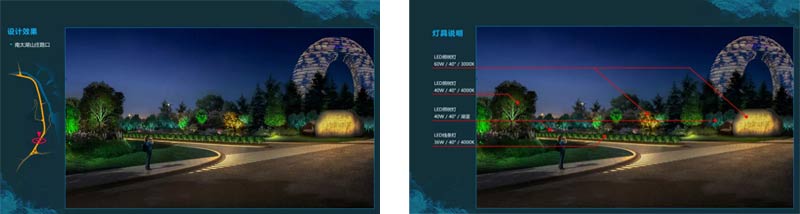

Lighting design and lighting parameters at the intersection of South Taihu Mountain Villa


Lighting design and lighting parameters at the north end of Taihu Road

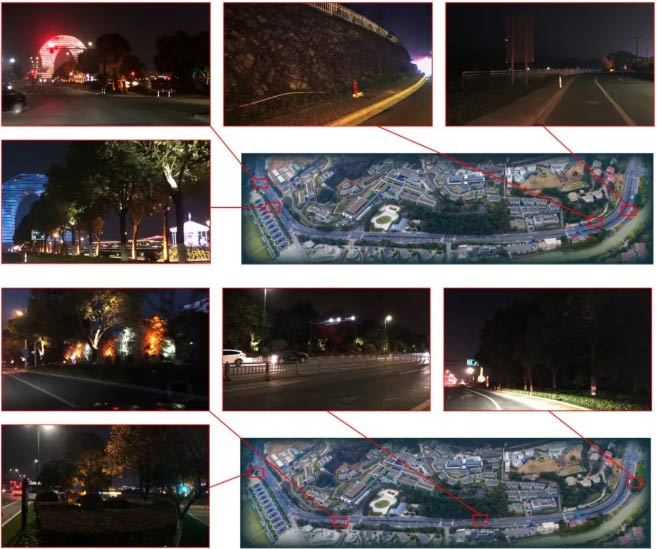

丨Before renovation丨


The overall brightness is too dark, the illumination is not enough, and the tree lighting has no continuity and unity, giving people a chaotic visual experience, lacking in features and individuality.

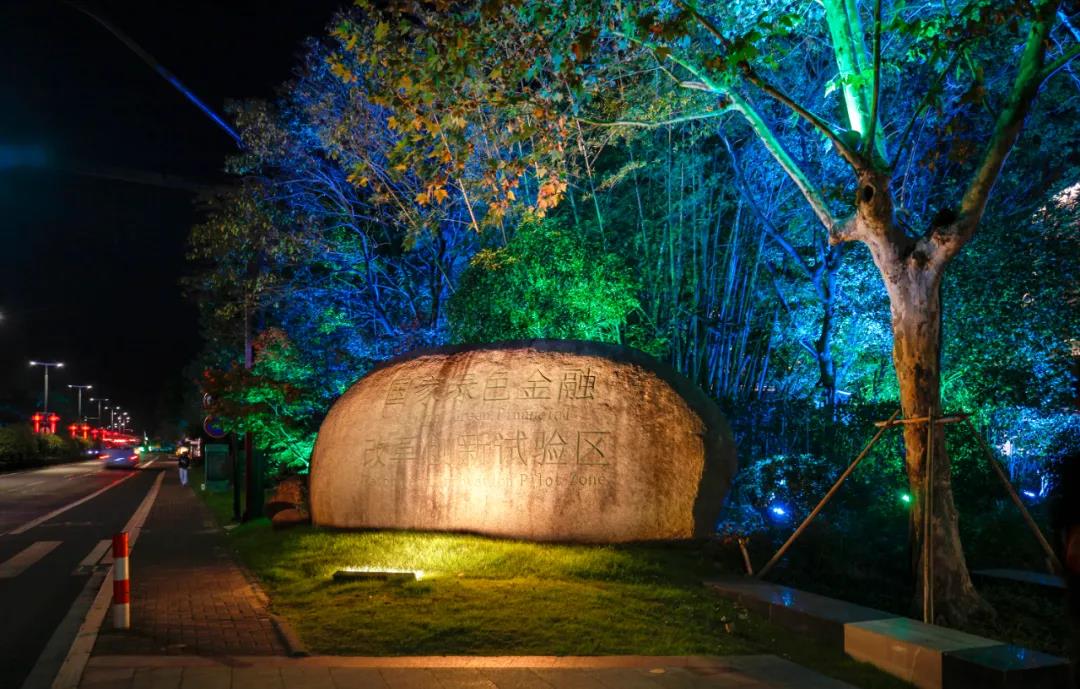

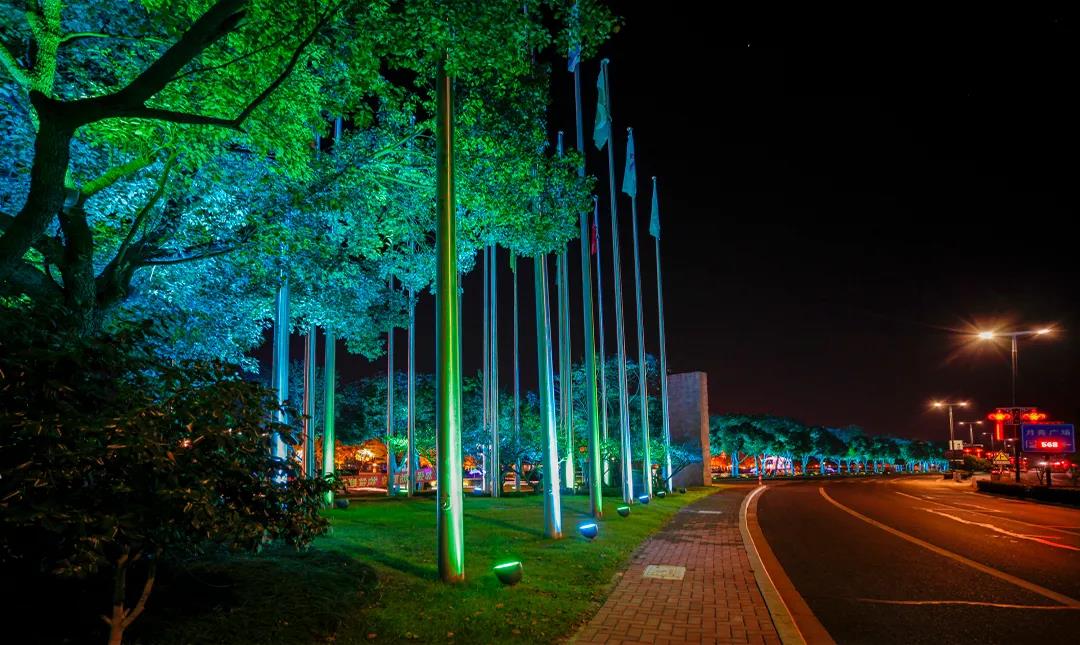

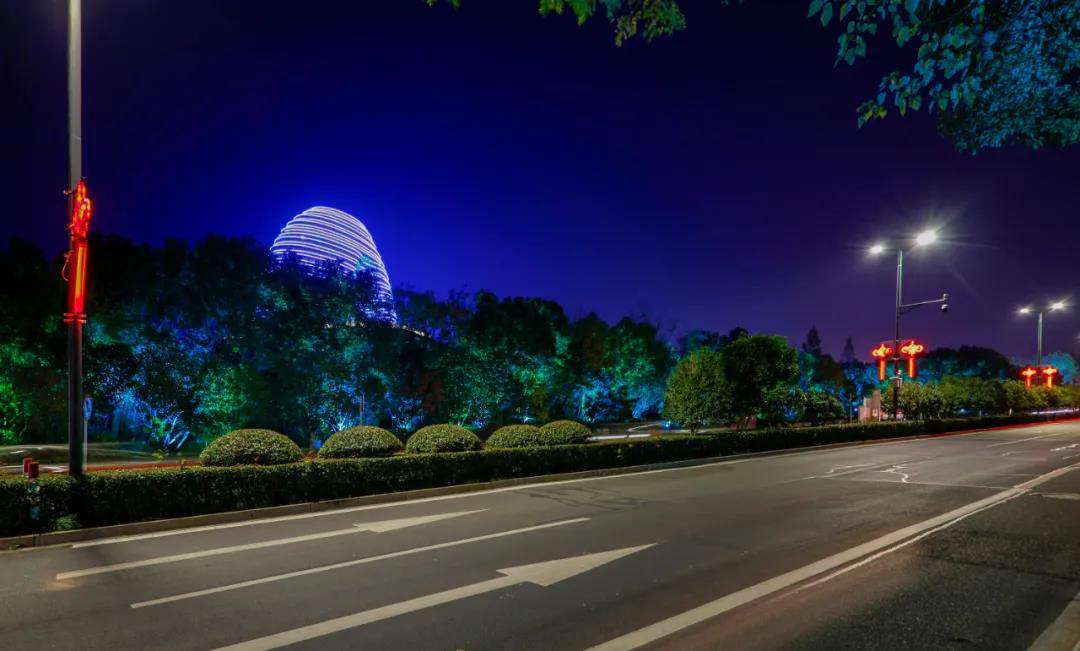

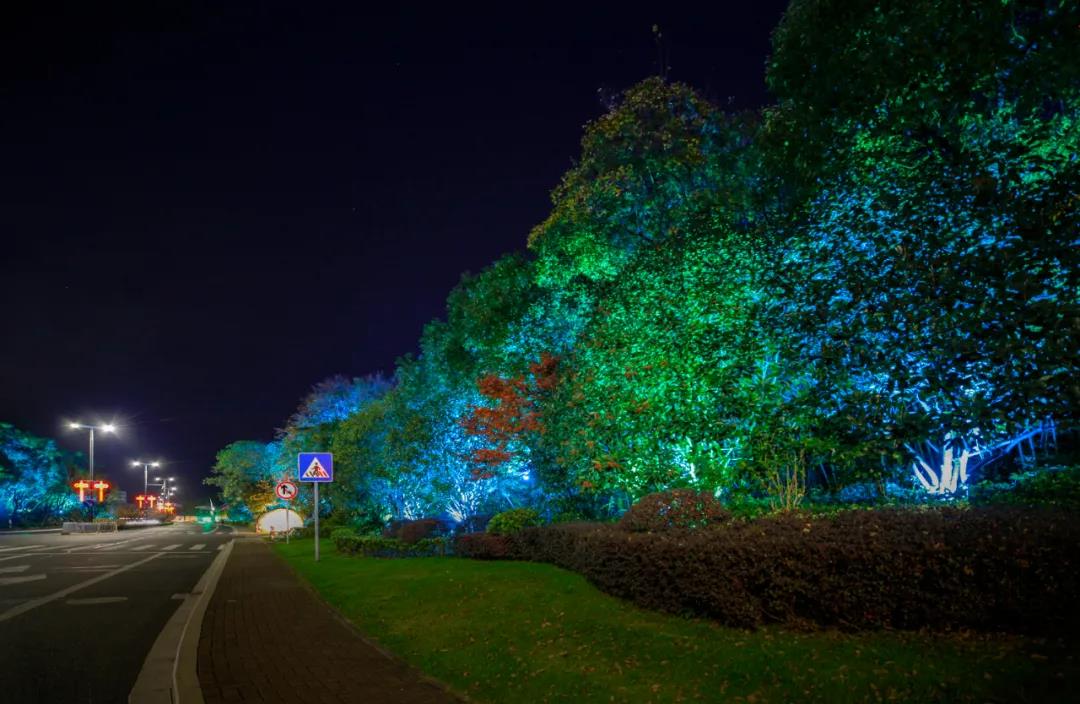

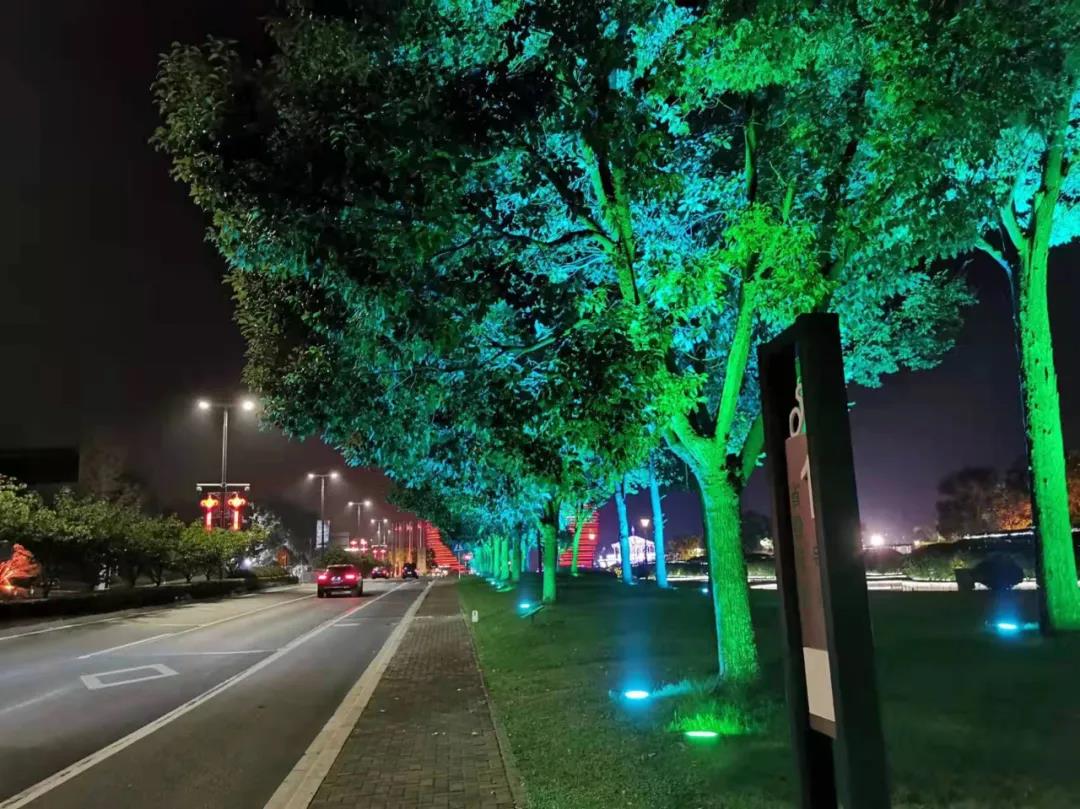

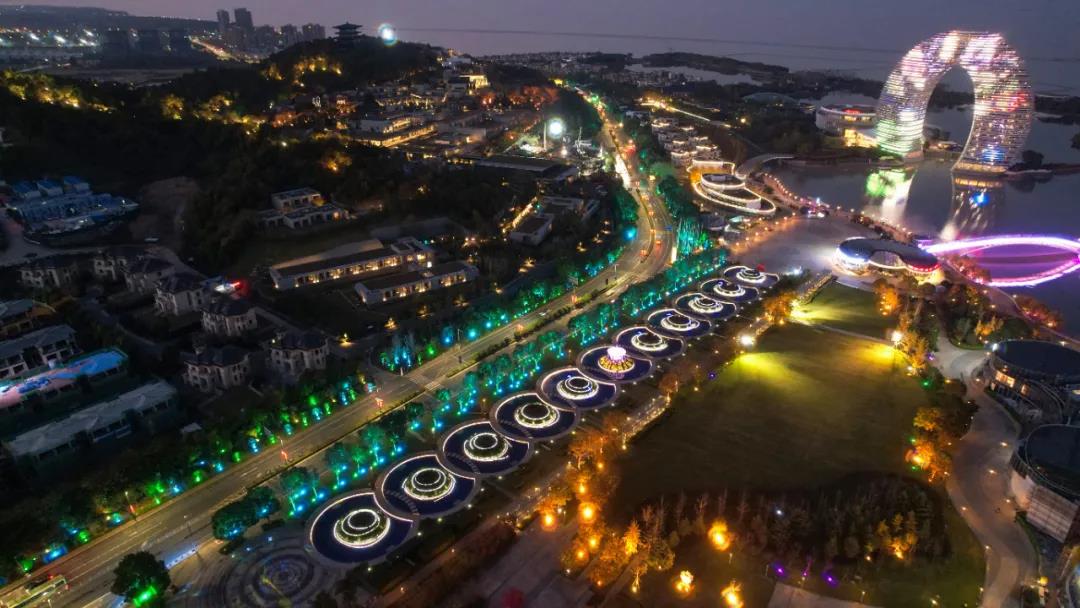

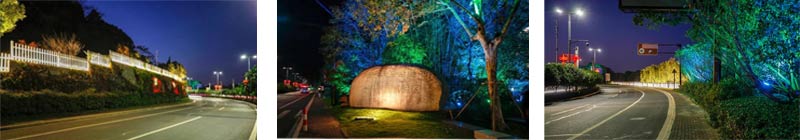

丨Appreciation of lighting after renovation丨

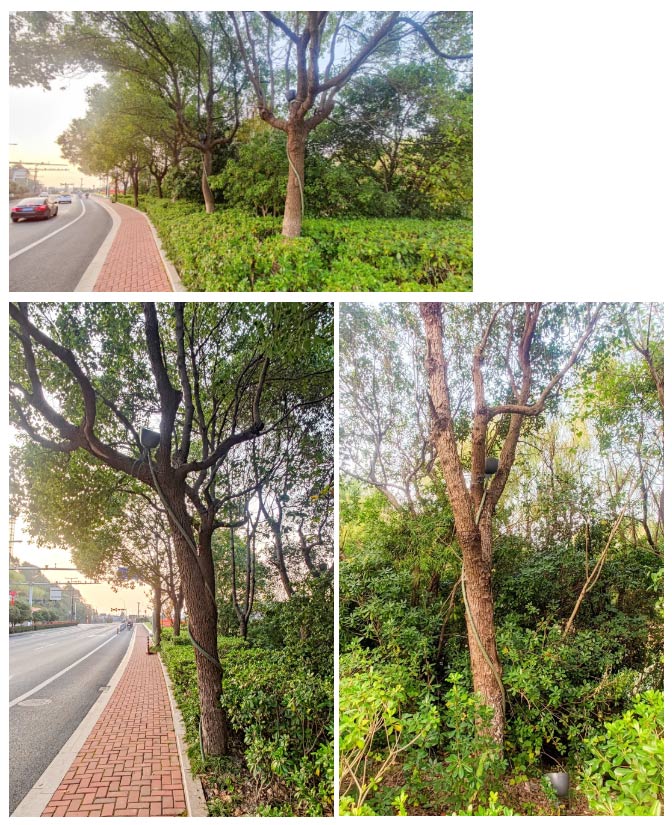

Lamp selection and installation




This project uses the Genie II tree lamp, which is an upgraded version of the Genie generation. It not only inherits the firm design of the Genie generation, but also has a high-quality, anti-corrosion special surface coating, high IP level, to ensure a long service life of the lamps, etc. Multiple advantages, and a lot of upgrades have been made, such as improved light efficiency, improved CRI, increased anti-glare measures (5 types), and increased multi-application installation scenarios.



● The lamp adopts integrated die-casting process, low-copper corrosion-resistant aluminum alloy material, outdoor electrostatic spraying process on the surface, and polyester plastic powder resistant to outdoor environment. The lamp light source is designed with multiple anti-glare technical solutions to effectively control visual glare and spill light. High-strength horseshoe teeth, the bracket is fixed by the self-locking structure to prevent external force sliding. Built-in hidden circuit structure, no exposed wires, safe, beautiful and reliable.



ORJ

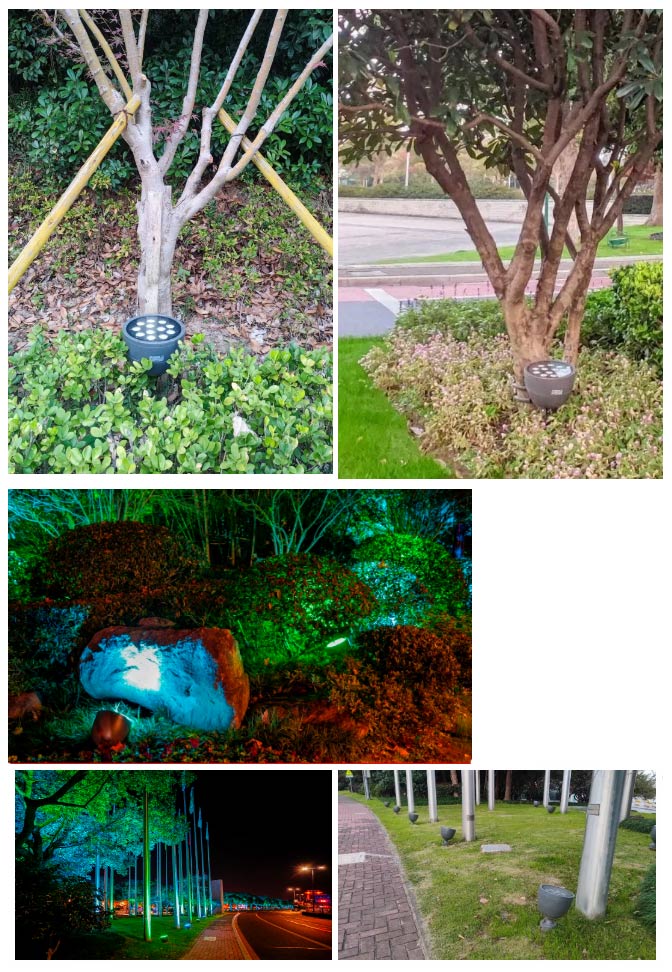

Elf II tree lamp

● The flexible stainless steel expansion spring at the bottom of the lamp can be stretched and held on the trunk of the tree without hindering or damaging the growth of the tree. Pull-out installation, simple and integrated environment. There are two sizes of hoop to choose from. The function of the tree-holding lamp has been upgraded, with two-way rotation and a 360° rotating anti-glare cover



ORJ

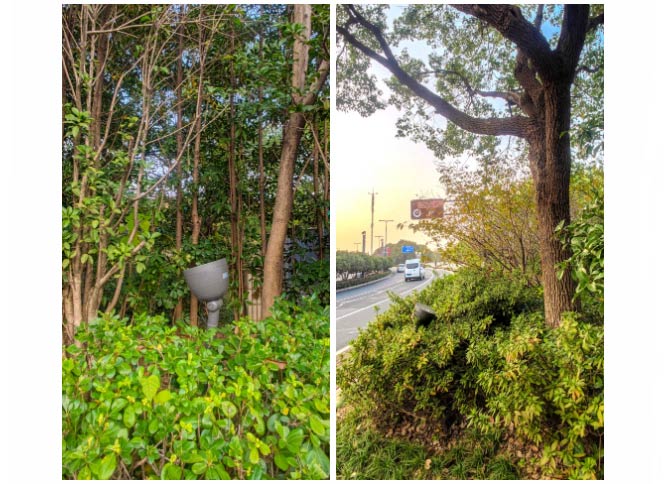

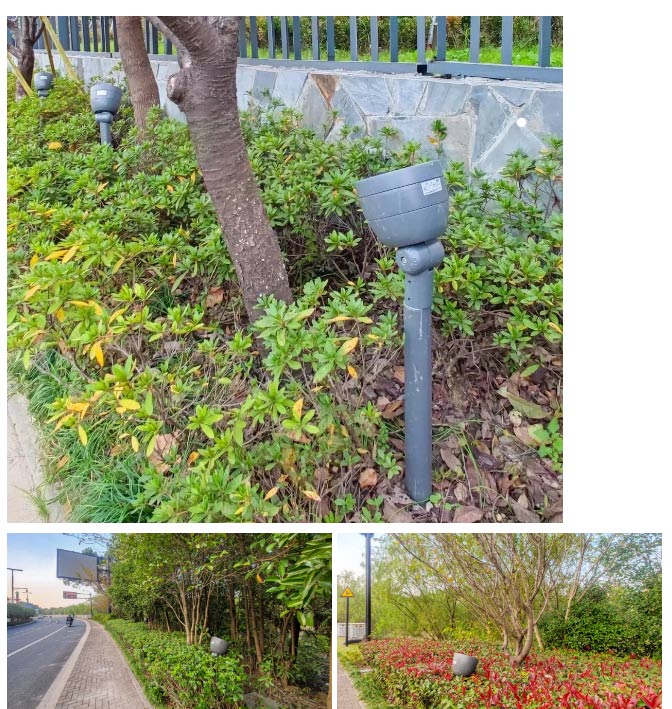

Elf II Lawn Pole

● The lamps are combined with lawn lamps and tree lamps. Applicable to lawns, both sides of trails, and shrubs in the middle. The top lamp is made of die-cast aluminum alloy, and the rod body is made of laser engraving process. The height of the position can be raised and lowered, and can be adjusted according to the height of the shrub;




ORJ

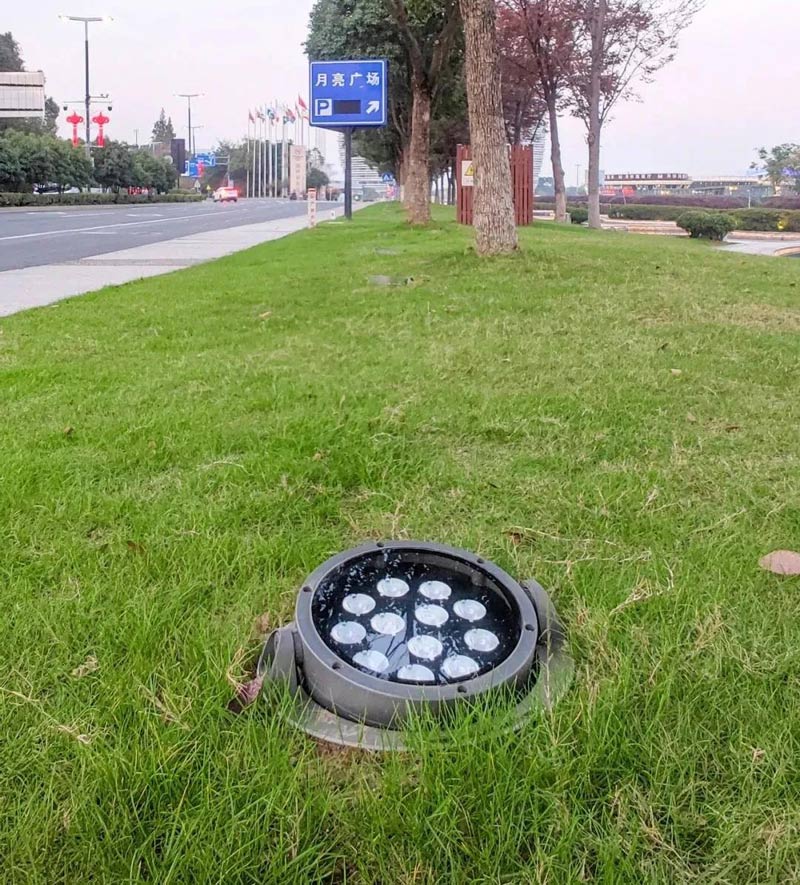

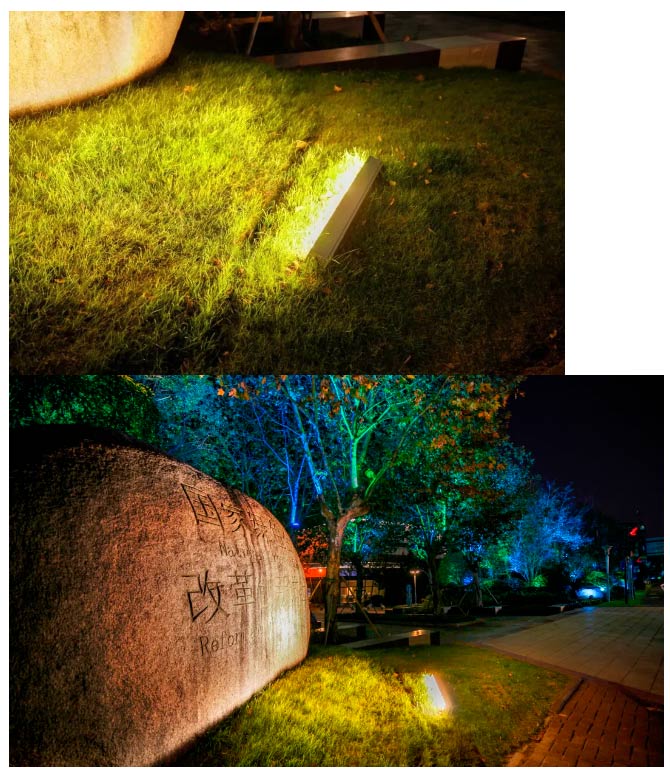

Genie II underground lamp

● Avoid turf covering and blocking light; excellent anti-glare low-position function; high-strength PE anti-corrosion embedded tube; 304 stainless steel cover, 5mm high-strength tempered glass; High-strength horseshoe tooth self-locking structure is fixed, not easy to shake;


ORJ

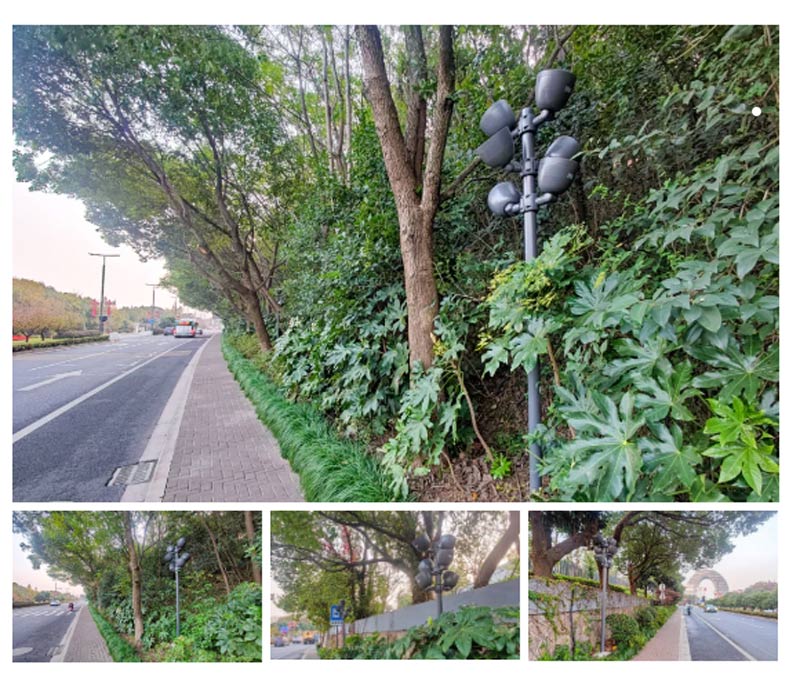

Genie II Pole Light

● The lamps are installed on high poles, which can achieve multi-directional and multi-angle illumination. It can take into account the multi-directional common lighting of tall trees, low trees, and trails. The pole installation is equipped with high-pressure die-casting double-piece lobe hoop, which can realize 360-degree rotation of Y-axis, 360-degree rotation of X-axis, and 180-degree rotation of Z-axis, concealed wires, and built-in wires can be rotated once. To avoid potential safety hazards, the lamp wires are directly connected to the access door, and there is no interface breakpoint to avoid potential safety hazards.


ORJ

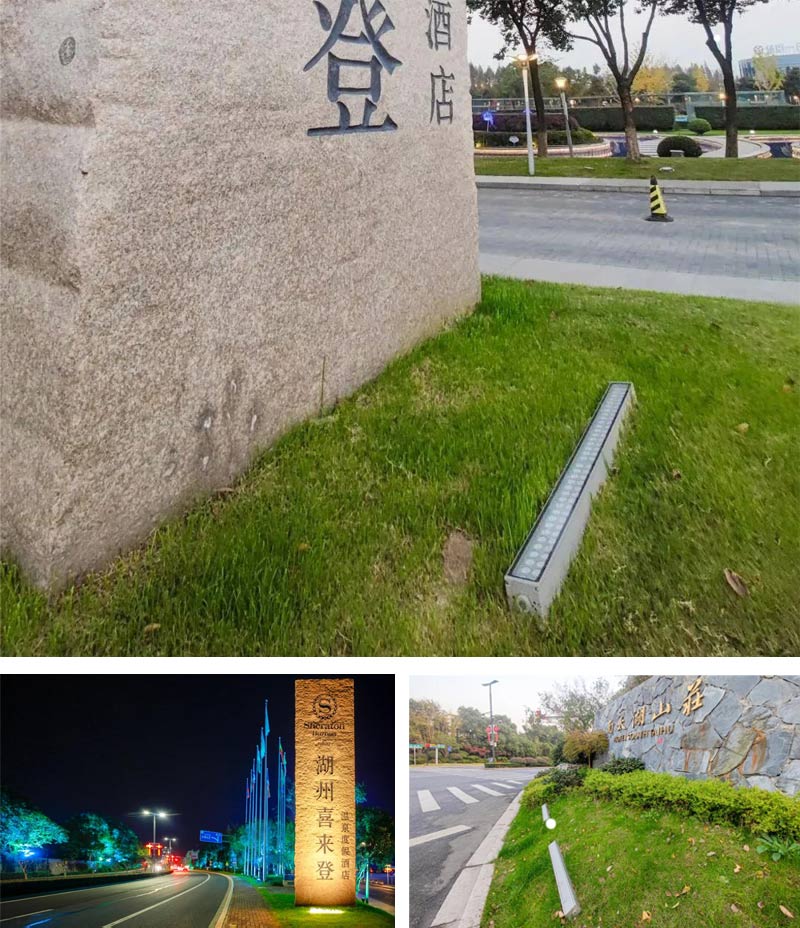

L01E Wall washer

● The lamp body is made of 6063 modified low-copper corrosion-resistant aluminum alloy material, the appearance of the lamp is smooth and clean, and 4mm tempered anti-glare glass. The lens is made of imported PMMA material, with strong UV resistance, optical correction, no color spots, and light transmittance of more than 92%. Precise optical design, consistent light color; tempered anti-glare glass + external hood, double physical anti-glare; effectively protect visual comfort;


Quick connection can be achieved through the built-in wiring cavity or accessories of the lamp, which is convenient for maintenance; safe and beautiful. The profiles can be quickly and easily fixed and disassembled, and the lamps can be adjusted 180°; the high-strength damping bracket is fixed with a self-locking structure to prevent external sliding; the lamps can be equipped with an integrated external anti-glare device.
