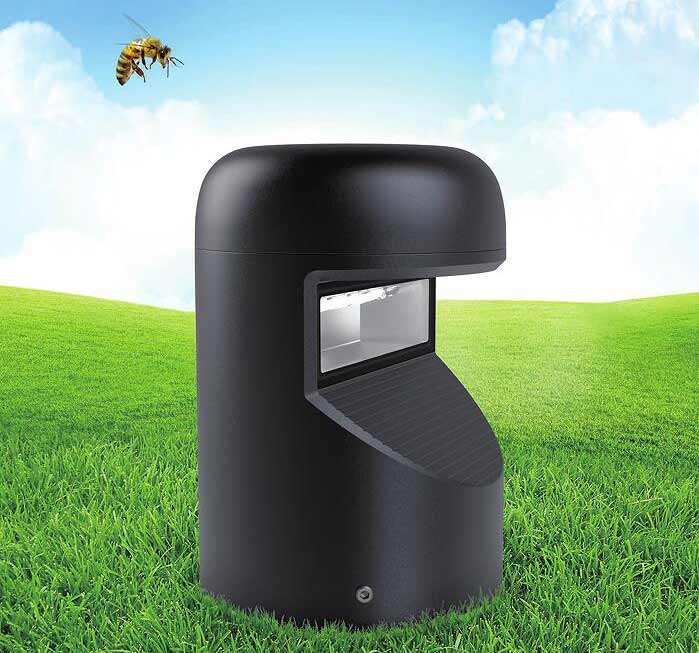

ADVANTAGE 1 STRONG STRUCTURE AND HIGH PROTECTION

Glass embedded, die cast aluminum shell with high strength: Circular arc surface reduces

damage rate and prevents human damage, Can withstand 50kg impact and withstand stepping.

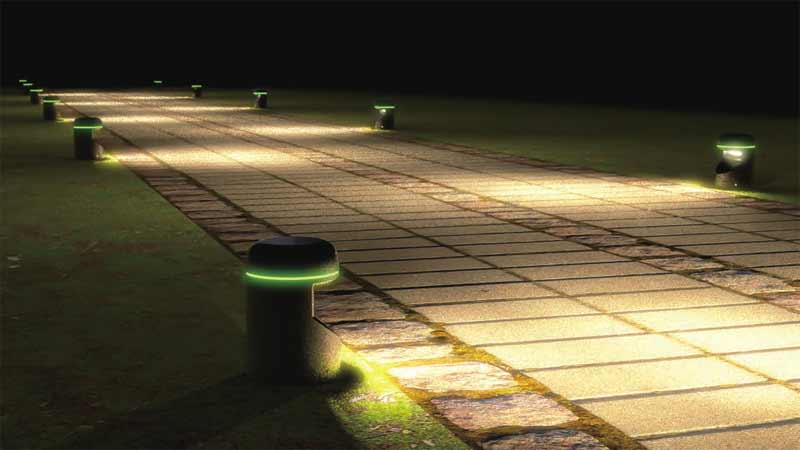

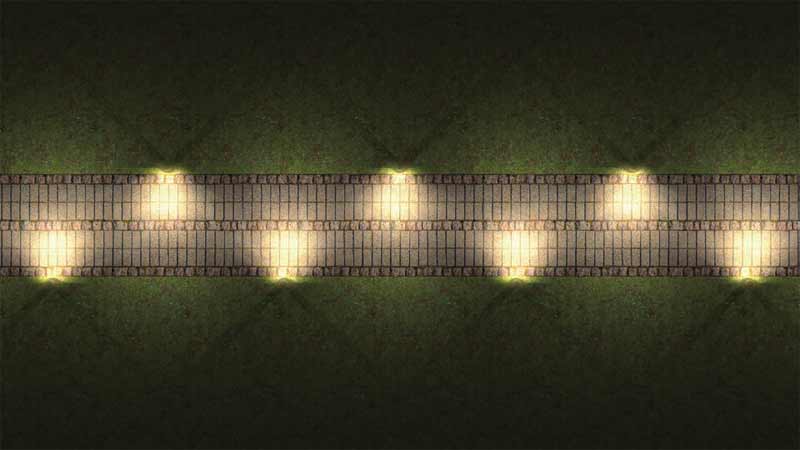

ADVANTAGE 2 180° DIFFUSION LIGHT DISTRIBUTION WITH STRONG UNIFORMITY

180° extreme light dstribution. ultra long coverage, and strong uniformity. Simultaneously balancing road ighting and lawn lighting.

Solve the problem of small ilumination range and short distance of the original lawn lamp: Supplement the issue of insficient low-level lighting for garden roads, steps, lawns and other areas.

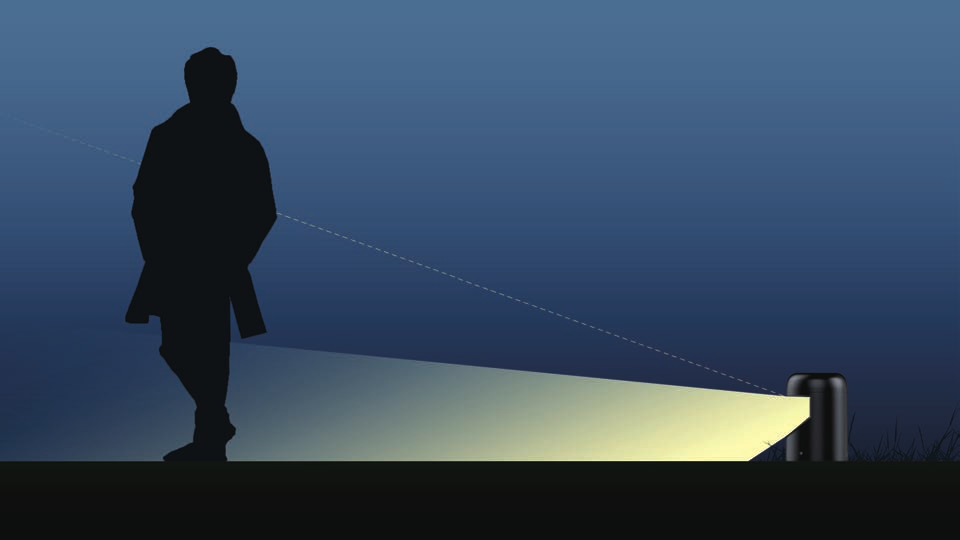

ADVANTAGE 3 LOW LEVEL CUT-OFF LIGHT DESIGN- NO GLARE

Low level cut-off light dstribution solves the problem of heavy glare in lawn lights. while also considering functional lighting. ensuringno

glare to the eyes of people four meters away.

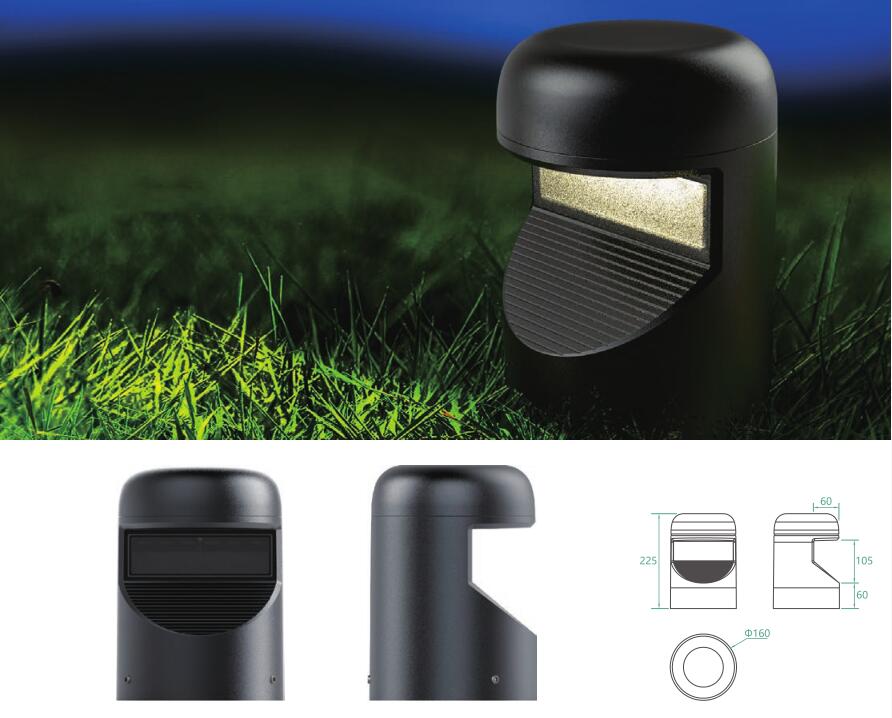

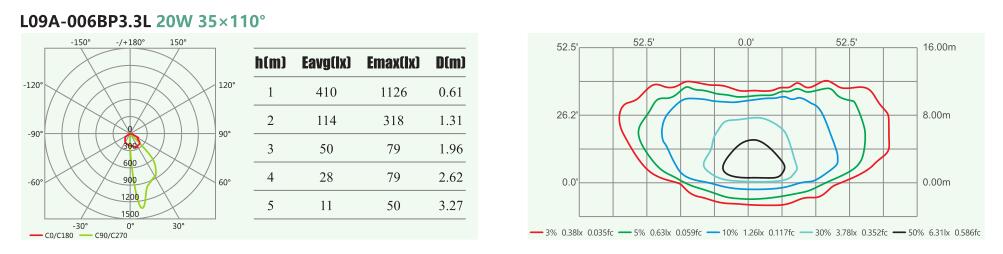

L09A-006 BP3.3L

	Rated Power	Input Voltage	LED Quantity	Optical Angle	Luminous flux	Net Weight	Lamp Size	Gross Weight/Packing Size
	20W	DC 24V/AC24V	6 pcs	35x110°	1420lm	2.4kg	φ160x 225mm	2.6kg/280x200x200mm(1pcs/box) 10.0kg/380x 380x300mm(4pcs/box)

L09A-G06 BP3.3L

	Rated Power	Input Voltage	LED Quantity	Optical Angle	Luminous flux	Net Weight	Lamp Size	Gross Weight/Packing Size
	20W	DC 24V/AC24V	6 pcs	35x110°	1420lm	2.4kg	φ160x 230mm	2.6kg/280x200x200mm(1pcs/box) 10.0kg/380x 380x300mm(4pcs/box)

L09A-T01B

	Rated Power	Input Voltage	LED Quantity	Optical Angle	Luminous flux	Net Weight	Lamp Size	Gross Weight/Packing Size
	20W	DC 24V/AC24V	1 pcs	-	-	3.0kg	φ160x 225mm	3.2kg/280x200x200mm(1pcs/box) 12.5kg/380x 380x300mm(4pcs/box)
